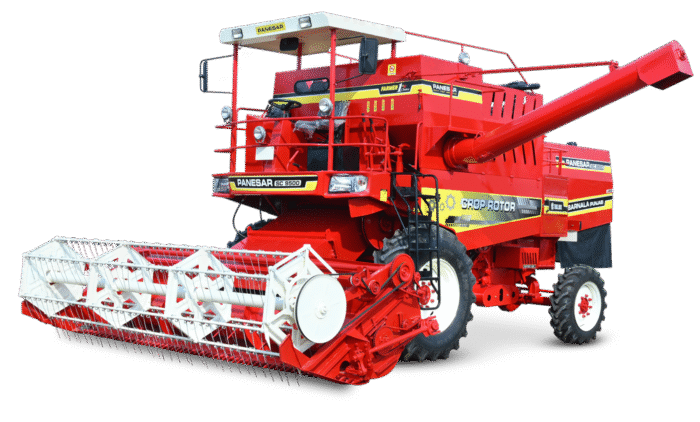

SC 9500 Panesar 133 HP Combine Harvester
Original price was: ₹85,000.00.₹75,000.00Current price is: ₹75,000.00. /month
SC 9500 Self Propelled Combine Harvester is built with utmost reputation for what is important to farmers when it comes to harvesting, such as capacity, fuel efficiency, grain quality, low grain loss, reduced compaction and in field service availability. Panesar SC 9500 is a Self Propelled Multicrop Combine Harvester with Straw Walker Technology featuring diesel engines that are noted for the extraordinary power and reduced fuel consumption, while also complying with today’s stringent emissions standards.
SC 9500 Self Propelled Combine Harvester is built with utmost reputation for what is important to farmers when it comes to harvesting, such as capacity, fuel efficiency, grain quality, low grain loss, reduced compaction and in field service availability. Panesar SC 9500 is a Self Propelled Multicrop Combine Harvester with Straw Walker Technology featuring diesel engines that are noted for the extraordinary power and reduced fuel consumption, while also complying with today’s stringent emissions standards.
| A.Engine | Ashok Leyland |
|---|---|
| Model | HGETIC3RD22 |
| Power | 101 HP at 2200 RPM |
| No. of Cylinder | Six |
| Air Cleaner | Dry |
| Cooling System | Water Cooled |
| B. CLUTCH | |
| Type of Clutch | Single, Heavy Duty Dry Clutch |
| Dia (mm) | 310 |
| C. TRANSMISSION / DRIVE | |
| No. of Gears | 6 Forward, 2 Reverse |
| Gear Speeds (km/hr) | |
| Forward | L—–H |
| 1st Gear | 2—–4 |
| 1st Gear | 4—–8 |
| 1st Gear | 8—–20 |
| Reverse | 4—–8 |

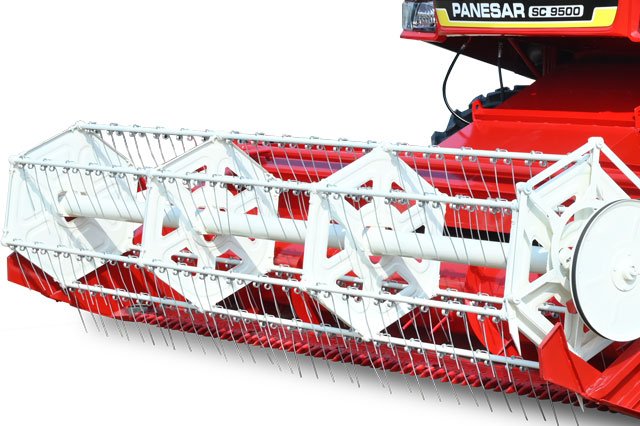

| D. CUTTER BAR MECHANISM | |
| for Wheat, Paddy & Others | |
| Width | 4191 mm, (165″) |
| Cutting Height (mm) | 55-1250 mm |
| No. of blades | 58 |
| No. of Guards | 57 |
| Stroke (mm) | 75 |
| Reel (rpm) | 26-61 |
| Dia (mm) | 1064 |
| Feeder Housing | Chain Type Feed Rack |
| E1. THRESHING MECHANISM | W—–P—–M |
| Rasp Bar—Peg Toth—Rasp Bar | |
| Width (mm) | 1270—–1230—–1270 |
| Diameter of Thresher Drum (mm) | 585—–605—–585 |
| Speed (rpm) | 750-1020 |
| Speed Adjustment | By Means of Mechanical Aviator |
| E2. Concave | |
| Clearance | |
| Front (mm) | 15 -45 —– 15-45 |
| Rear (mm) | 8-30—– 10-40 |
| Adjustment | Mechanical |
| E3. STRAW WALKER | |
| No. of Straw Walker | 5 |
| No. of Steps | 6 |
| Length (mm) | 3850 |
| Width (mm) | 235 |
| E4. CLEANING SIEVES | |
| Area | |
| Upper Sieve | 1.363 |
| Lower Sieve | 0.688 |
| F. CAPACITIES | |
| Grain Tank | 2.013 |
| Fuel Tank(Ltr.) | 304 Ltr. |
| G. BATTERY | |
| No. of Batteries | 2 |
| Capacity & Rating of each | 12 V, 88 Ah |
| H. TYRE | |
| Front | (18.4-30) 14pr |
| Rear | (7.50-16) 12pr |
| MAIN DIMENSION | |
| In Working: | |
| Length (mm) | 8620 |
| Width (mm) | 6390 |
| Height (mm) | 4190 |
| Ground Clearance (mm) | 420 |
| In Transport | |
| Length (mm) | 11820 |
| Width (mm) | 3250 |
| Height (mm) | 4100 |
| Weight (Kg.) | 8670 Kgs |
