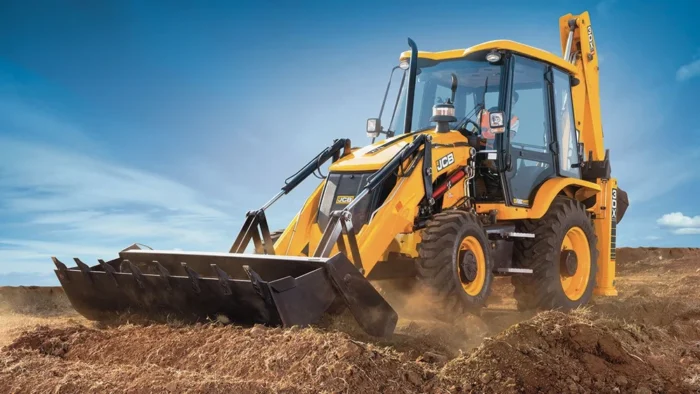

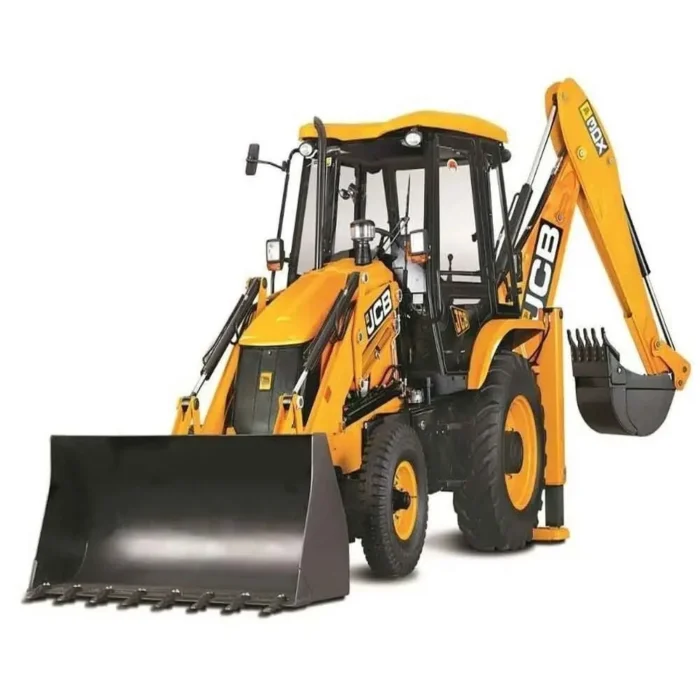

JCB 3DX Plus Backhoe Loader, 74 Hp

Original price was: ₹75,000.00.Current price is: ₹70,000.00. /month

Add to compare
Add to wishlist
Category: Tag:
Description
Max Engine Power
74 Hp
Loader Capacity
0.27 cum
Wheel Drive
4 WD
Model
JCB 3DX Plus
Brand
JCB
Max Digging Depth
4.77 m
Bucket Capacity
1.0 cum
Condition
New
Country of Origin
Made in India
Maximum Operating Weight
5000kg
Engine Power
55 kW
Wheelbase
2.17m
Slew Ground Clearance
0.51m
Width Over Bucket
2.35m
Track Width – Front
1.86m
Track Width – Rear
1.7m
The legendary performance of the JCB Backhoe Loader is now available in an even more powerful 4WD variant. Introducing the JCB 3DX Plus – 4WD Backhoe Loader a machine that redefines versatility. Take on any task, on any terrain, now with more confidence and power with the JCB 3DX Plus – 4WD Backhoe Loader. Taking the legendary legacy of the JCB Backhoe Loader range forward, the JCB 3DX Plus – 4WD Backhoe Loader is built to get the best out of challenging tasks like groundwork for various applications as diverse as re-handling, hopper feeding, ramping, site stripping and dozing.
Featuring 5%* Higher Dump Height for Better Reach, improved ease for loading materials, and  4WD power that pairs with better productivity and fuel efficiency.
This new gen Backhoe Loader is ready to take your jobs to the very next level of performance.
* Against the current 3DX Plus 2WD vs 4WD in loading application, tested under controlled environment.
Static Dimensions

1 The boom and dipper is designed to perform heavy-duty work in arduous region.
2 Loader arm is designed in D Shape, the side plate is inside & channels are outside. It resists the twisting while entering in pile making it ideal for tough applications.
3 The “H” section has a bigger cross sectional area & more welding area, making it a sturdier & reliable loader arm joint section.
4 JCB ‘Q’ brakes are quick and reliable . The hydraulically actuated, dual line and self adjusting (compensated) brakes pedal reduce operating force for effective braking. The multi-disc type brakes on rear axle are immersed in oil and require low maintenance as they are well protected from dirt, water, etc.
5 The chassis is engineered to be durable and robust making it fit for demanding situation.
6 2000 bar high pressure fuel injection for robust fuel system to work efficiently in any harsh operating environment and maintain emission limits.
7 Durable, dust & water-proof IP69 connectors for all electrical harness.
